Applicable industries：
Products from industries such as food, medicine, toys, clothing, footwear, chemicals, leather, and knitting are used for detecting metal impurities mixed in various products or raw materials during the production and processing process. For example: ferrous and non-ferrous magnetic and non-magnetic metal items (common metals such as iron, copper, aluminum, stainless steel, etc. can all be detected)

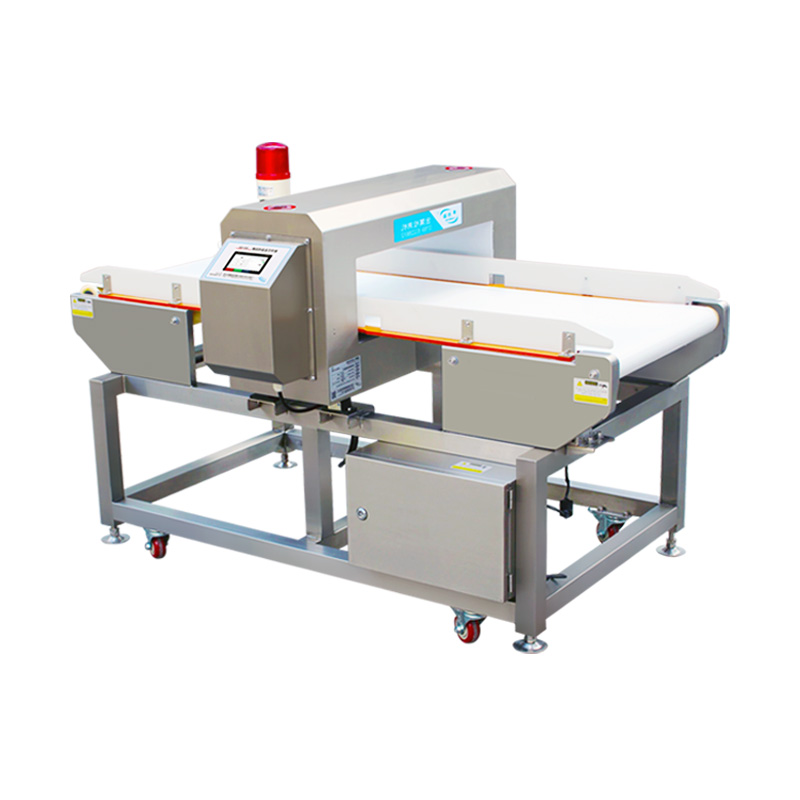

Product features:
●Equipped with a 4.3-inch touch-screen control panel and bilingual menus in Chinese and English.
●Adopting fully digital DSP programming design and dual-channel signal detection circuit integration technology, it features high sensitivity and strong anti-interference capability.
●Signal processing is automatically calculated by digital chips, enabling rapid automatic learning to obtain the optimal detection phase. It can store and memorize 100 types of products, offering stability and reliability.
●It has an automatic learning function based on product effects. For example, products containing sugar and foods with salt content, such as meat products, will generate signals similar to those of metals when passed through the metal detector. This effect can affect the detection results. This function can automatically reduce the product effect to achieve the best results.
●The entire machine frame is made of 304 stainless steel through laser cutting and welding technology as well as sandblasting process. It is equipped with food-grade white PVC or PU belts, Japanese brand bearings and non-metallic rollers of Ф60mm without metal contamination. It also uses Japanese Samsung synchronous belts and Zhongda brand motors.
●Detection alarm method: Buzzer alarm/shutdown, with excellent anti-vibration capability. Collisions and impacts will not trigger false alarms.

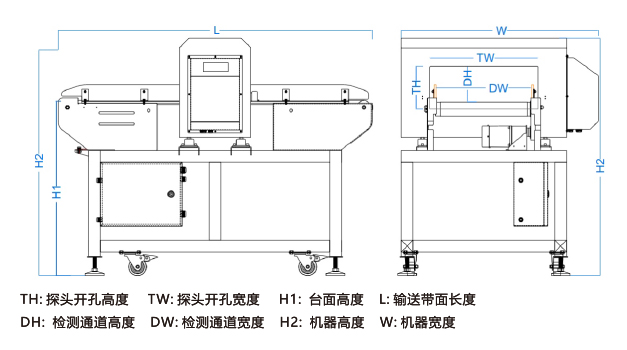

Technical parameter table:
Related parameters: | |||||||||
Type | 4010 | 4012 | 4015 | 4020 | 4025 | 4030 | 4035 | 4040 | |
Detection channel width(Unit:mm) | 400 Customizable to other widths | ||||||||
Detection channel height(Unit:mm) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
Sensitivity | FeФ(mm) | 0.8 | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 |
Non-FeФ(mm) | 1.2 | 1.2 | 1.5 | 1.8 | 2.0 | 2.5 | 3.0 | 3.5 | |
SusФ(mm) | 1.5 | 1.5 | 1.8 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | |
Type of alarm | Alarm shutdownþ Push¨ Swing arm¨ Sink¨ Tape rewind¨ | ||||||||
Machine size | 1330（1500）×720×1000mm(Length × Width × Height) | ||||||||
Speed | 定速25m/min（可选调速型10-40m/min） | ||||||||
Conveyor | 食品级白色PVC（可选绿色、蓝色或PU）Food-grade white PVC (optional in green, blue or PU) | ||||||||
Roller diameter | 60mm(可选25、35、50、60、75) | ||||||||
Machine weight | 约200～250KG | ||||||||
Power | 220V 50Hz 功率：90W | ||||||||
Loading capacity | 5-25KG （Optional greater load capacity） | ||||||||
Working table | 700mm（Customizable to other heights） | ||||||||
All regular machines are available in stock. The sensitivity parameters are approximate values from the empty machine test. The actual inspection parameters may vary depending on the type of object being inspected. | |||||||||
