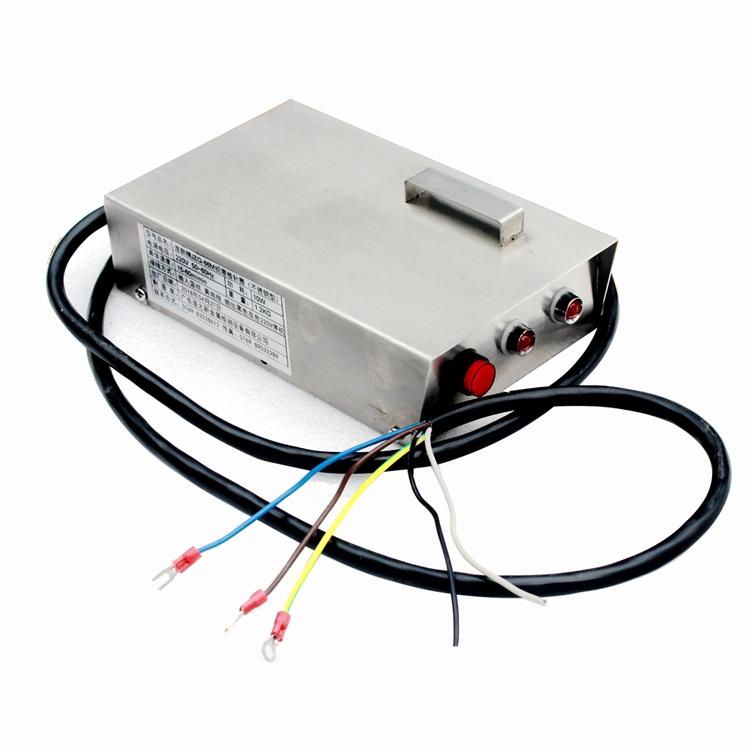

JZQ-86M Micro-platform Type Tape-like Fabric Inspection Needle Detector

Model：Micro-platform Type Tape-like Fabric Inspection Needle Detector

Also known as the tape inspection needle device or the tape inspection needle machine! It can be installed on the tape fabric inspection machine to control the presence of metal foreign objects. If any staples or small metal fragments are found on the tape, it will immediately output an alarm and stop signal, allowing the tape assembly machine and other equipment to stop running. Workers can then promptly remove the metal residues.

Tel：13723581296

Explanation

Scope of Application：

 It is used for detecting broken needles in woven fabrics and other woven materials. It can detect metal impurities such as broken sewing needles, blades, metal fragments, ferromagnetic metals, etc. It can also control the machine to stop.

功能特点Features：

1、 Japanese technology, computer chip integrated circuits.

2、 This machine has extremely high sensitivity and anti-interference performance, and can withstand long-term use. According to the specified usage, the detection effectiveness rate reaches 100%.

3、 When a broken needle or a metallic object is detected, both sound and light alarms will be triggered.

4、 The sensitivity can be adjusted continuously from 0 to 10.


 Product Parameter：

Body Material

 304 stainless steel outer case, elegant and sturdy, effectively enhancing product stability

Size

 20×12×5CM(长×宽×高)；探测通道:5.5×3CM(长×宽)

Search coverage

 55*30mm；

Weight

 约1.2Kg；

Power Voltage

交流220V

Frequency

 50HZ；

 Power

 30W；

  Alarm method

 声光报警,输出停机信号接口；

Sensitivity

 铁球：≥直径0.8mm；(常见断针距离1-50mm可检出)

  Way of checking

 一、Enterprise standard: When the randomly provided test card (with a diameter of 1.0MM for the iron ball) is moved and scanned close to the detector, it can detect and issue a sound and light alarm. If the body and appearance are intact without any defects, it is considered qualified.
二、Customer standard: Insert standard test card into the customer's product (make sure the product does not contain ferromagnetic metal impurities). Move the test card close to the test surface for scanning. The test instrument will issue a sound and light alarm indicating that it is qualified.
Note: The detection speed is most effective within the range of 10 to 60 meters per minute.
