Scope of application：

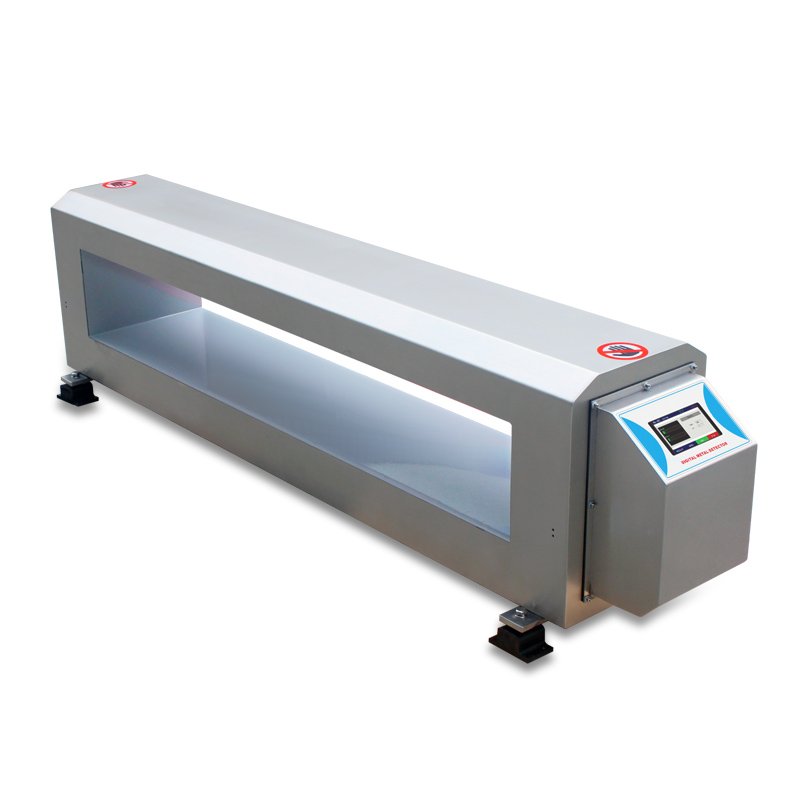

DLM-510S-All metal detector is mainly used for detection of food, medicines, toys, clothing, footwear, chemicals, leather, knitting, crafts and other items in the mix of all the metal foreign body.
Product characteristic:
1' mirror finished stainless steel shell, anti-erosion and long life span .
2' Material conveyor belt use non-toxic food grade belt.
3' High-performance high-power motor. all the products below 15kg can be conveyed to be checked.
4' Quick convey speed, it is specially suitable for pipeline operation.
5' When sensor detect a broken needle or over a diameter 0.8mm iron ball, buzzer will sound and conveyor belt will stop. After that, detected products will be return at hand.
6' The performance of the belt conveyor is complied with the American food sanitation standard (FDA), it can be used for transporting the unpacked food directly.
Technical parameters:
Model | DLM-510S | ||||||||
Machine Specifications | General machinery | ||||||||
Detection of channel width (mm) | 560 -Custom Size | ||||||||
Detection of the channel height (mm) | 80 | 100 | 120 | 150 | 180 | 230 | 250 | 300 | |
Test Standards Sensitivity (no-load) | Fe(Ф mm) | 0.6 | 0.7 | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 |
SUS(Ф mm) | 1.0 | 1.2 | 2.0 | 2.3 | 2.5 | 3.5 | 4.5 | 4.5 | |
Cu AL(Ф mm) | 1.0 | 1.2 | 2.0 | 2.3 | 3.0 | 3.5 | 4.5 | 4.5 | |
Alarm | Stop running, and buzzer alarm | ||||||||
Machine Material | mirror finished stainless steel | ||||||||

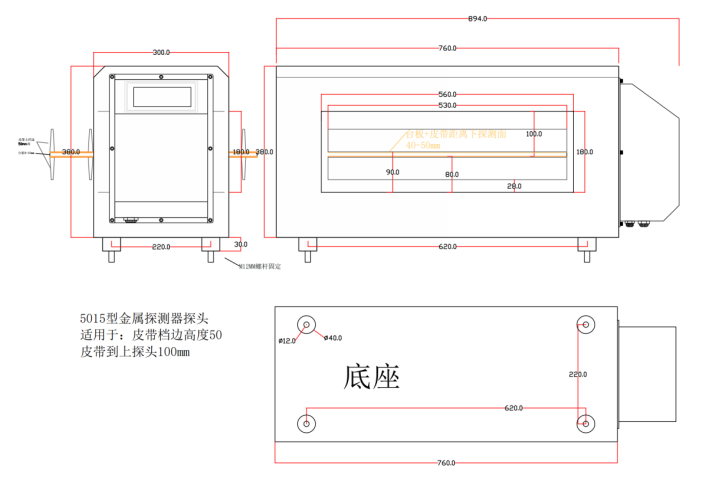

Machine size | 894×300×410(L×W×H) | ||||||||
Weight | 180KG | ||||||||
Power | Power supply:220V 50Hz Power:30W | ||||||||
Load capacity | ≤30KG | ||||||||
Table height | --- | ||||||||
Sensitivity of detection of an empty machine state parameters, the actual test may be different. | |||||||||
