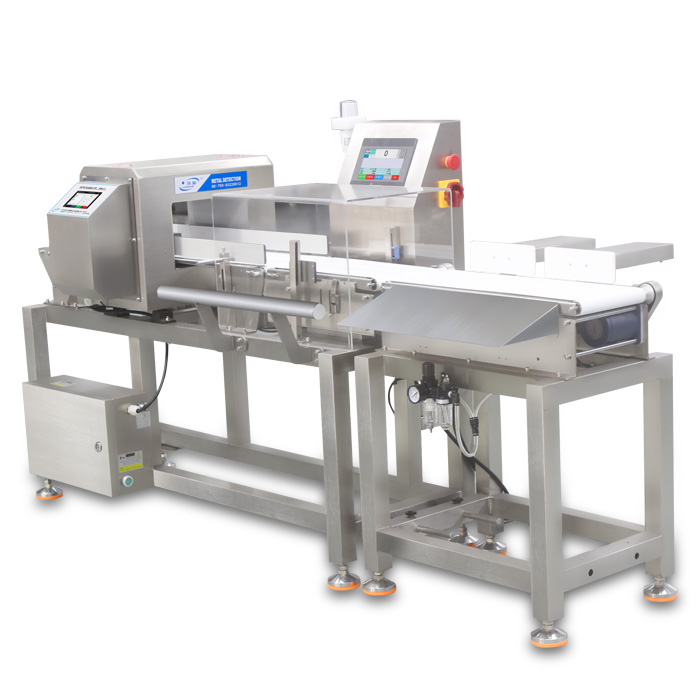

DLM-510S2022-CW210-2000 All-in-one Metal /Weight Inspection Machine

Model：All-in-one Metal /Weight Inspection Machine,Weight Inspection Machine,Weight Machine,Weight Checker

This product is suitable for testing individual items and is widely used in multiple industries such as electronics, pharmaceuticals, food, beverages, health products, daily chemicals, light industry, and agricultural and sideline products. For instance, in the food industry, it can be applied to processed foods, pastries, sausages, instant noodles, frozen foods, food additives, pigments, modifiers, preservatives, etc.

Product features ：

Weight Checker

●High versatility: The standardized structure of the entire machine and the standardized human-machine interface enable the weighing of various materials.

●Simple operation: use the color WEINVIEW HMI, fully intelligent and user-friendly design.

●Easy to maintain: conveyor belt is easy to disassemble and install, convenient for maintenance and cleaning.

●Speed adjustable: the frequency conversion control motor is used, and the speed can be adjusted according to the need.

●High speed, high precision: using high precision digital sensor, sampling speed is fast, high precision.

●Zero tracking: can be manually or automatically zeroed, and dynamic zero-point tracking.

●Reporting Function: Built-in reporting statistics. Reports can be generated in EXCEL format. It can automatically generate various real-time data reports. An external USB interface is provided, allowing the insertion of a USB drive for real-time data export. This enables you to always keep track of the production status. A factory parameter setting recovery function is offered, and multiple formulas can be stored, making it convenient to change product specifications.

●Interface Function: Pre-set standard interface, facilitating data management. Capable of communicating and connecting with PCs and other intelligent devices.

●Self-learning: After creating new product formula information, there is no need to set parameters. The self-learning function will automatically set the suitable parameters for the equipment and store them for easy retrieval during the next switch of products. (There are 2000 parameter storage entries, and more can be added).

Metal detector

●The operating system is designed with a user-friendly and intelligent approach. It features a high-definition 7-inch touch screen, providing an intuitive and convenient experience. The interface is easy to operate and enables staff to perform tasks effortlessly and clearly, without the need for complex procedures to obtain relevant information.

●It has a one-click self-learning function. Just by passing the tested product through the detection channel once according to the preset program, the product parameters can be automatically and accurately set and memorized without the need for manual adjustment. The operation is extremely simple.

●It has the storage and display of user access logs and detection logs data. The product production total and detected quantity statistics storage function is provided. The main interface can separately display the production total, qualified quantity, defective product detection quantity (the maximum number is 1 million). The equipment alarm logs can store the latest 700 items. Date perpetual calendar, with traceable logs.

●The unique detection of signal strength display can clearly show the size of the signal indicating the presence of metallic impurities in the product.

●It has the function of storing over 200 different product parameters, and can record the detection parameters of 200 different products. Once the settings are made and stored, they can be called up for use in the next operation without the need for further adjustment. It can quickly perform product conversions on the production line, minimizing the setup time to the greatest extent.

●It has the function of automatic fault detection upon startup and provides prompt notifications, effectively eliminating invalid detection.

Technical parameter table：

All-in-one Metal /Weight Inspection Machine
CW-200重量检测机400*210		金属检测机200*220
Weighing range	≤1000g	Convey weight	≤1000g
Weighing precision	±0.3g~±1g	Detection precision	FeΦ:1.2mm，Non-FeΦ:1.5mm SUSΦ:2.0mm；
Minimum scale	0.1g	Opening dimension	200mm*220mm
Conveying speed	30～60m/min	Conveying speed	30～60m/min
Top speed	120  pcs/min	Optimal detection speed	15～40m/min

Material size	≤250mm（L）*120mm（W）		Material inspection dimensions	≤200mm（L）*220mm（W）
Scale plate size	400mm（L）*210mm（W）		Metal detector conveying size	800mm（L）*210mm（W）
Control system	高速A/D采样控制器Sampling controller		Control system	DLM-510S
Pre-set products	99个		Storable product parameters	99个
Product size		2000mm（L）*680mm（W）*1280mm（H）
Power supply		AC220V±10% 50HZ~60HZ
Power rating		0.15KW
Method of elimination		Push rod type/Unilateral pendulum rod/Slat-type
Operation direction		面向机器，左进右出Left in, right out
External gas source		0.6-1Mpa
Air pressure interface		Φ8mm
Work environment		温度： 0℃～40℃，湿度：30%～95%
Body material		SUS304 不锈钢
