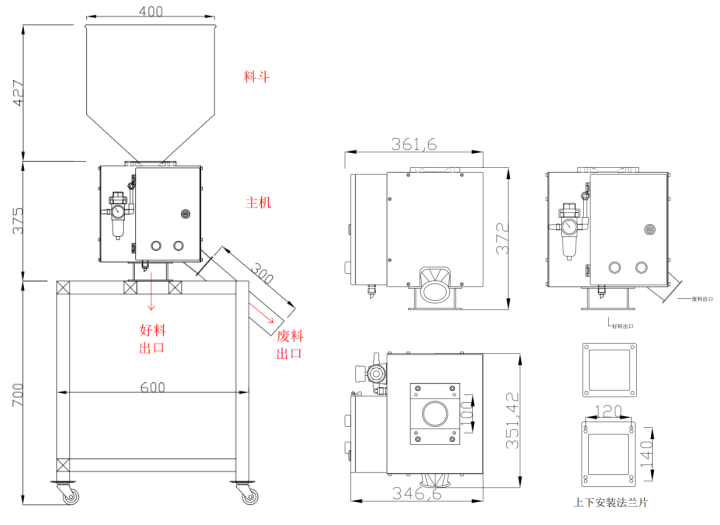

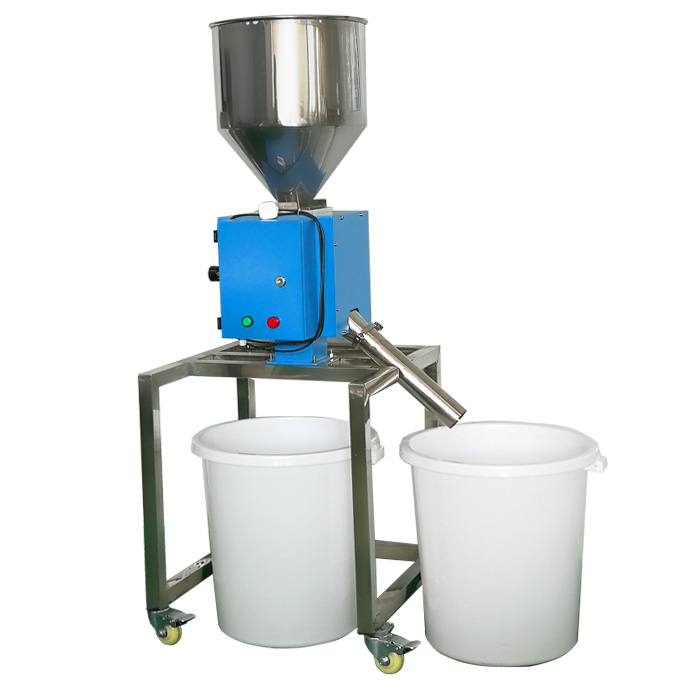

●It is composed of a hopper, a metal detector and an exclusion separation device. It has high sensitivity and strong anti-interference ability.
●Based on the principle of high-frequency electrical balance detection, it has extremely high metal detection capabilities.
●The sensitivity is controlled by a multi-turn potentiometer and can be finely adjusted step by step.
●The metal detector part can be independently installed on other equipment such as injection molding machines for use, and an easy installation bracket can also be optionally equipped.
●It is equipped with an audible and visual alarm system and can automatically expel metallic foreign objects through pneumatic means. The operation is extremely convenient and reliable.
Product Use：
It is used for removing metal impurities from granular and powdered plastic materials to prevent metal particles from damaging the equipment and causing an increase in plastic defective rates.
It is also used for detecting metal in dry and flowable foods, grains, feed, etc. (which have no long fibers, no large pieces, and no conductivity).
Product Parameter： | ||||||
Model | DLM-G | |||||
Machine specifications | non-standard | Conventional machine | Other calibers | |||
Detection channel diameter (unit: millimeters) | 25 | 35 | 50 | 65 | 100 | |
Sensitivity | Fe(Фmm) | 0.2 | 0.3 | 0.5 | 0.8 | 1.0 |
Sus(Фmm) | 0.5 | 0.8 | 0.9 | 1.0 | 1.5 | |
NonFe(Фmm) | 0.6 | 0.8 | 0.9 | 1.0 | 1.5 | |
Height of the mainframe(mm) | 375 | 375 | 375 | 375 | 475 | |
Detectability（kg/min） | 250 | 350 | 600 | 800 | 1000 | |
Hopper size（High*Diameter mm） | 450*400 | 470*400 | ||||
Wipe-out mode | Pneumatic flap valve discharge | |||||
Air source requirements | ≥0.5Mpa(Requires self-provided air source) | |||||
Machine material | External steel with paint finish, internal 304 stainless steel. Optional external stainless steel model. | |||||
