l Report function: built-in report statistics, the report can be generated in EXCEL format, can automatically generate a variety of real-time data reports,，
The U disk can store statistical data for more than one year, and keep the production status at any time;；
l nterface function: reserved standard interface, convenient data management, can communicate with PC and other smart devices；
l Realize centralized control: can realize centralized control of multiple checkweighers by one computer/human-machine interface；
l Parameter recovery function: Provide factory parameter setting recovery function。
Product Feature：
l Strong Versatility：The standardized structure of the whole machine and the standardized human-machine interface can complete the weighing of various materials；
l Easy to change product formula：Can store a variety of formulas, easy to change formulas；
l Easy to operate：Use Weilun color man-machine interface, fully intelligent and humanized design；
l Easy to maintain：The conveyor belt is easy to disassemble, install and maintain, and is easy to clean；
l Conveyor Speed is adjustable：Using frequency conversion control motor, speed can be adjusted according to needs；
l High Speed 、High Accuracy：Adopt high-precision digital sensor, fast sampling speed and high precision；
l Zero tracking：Can be manually or automatically cleared, and dynamic zero tracking；
Item | CW-150 |
Voltage | AC220V±10% 50HZ（60HZ） |
Power | 0.1KW |
Weighing range | ≤200g |
Accuracy | ±0.2g~±0.5g |
Minimum scale | 0.1g |
Belt Speed | 40～70m/min |
Max checking speed | 150 pcs/min |
Product Size to be weighted | ≤150mm*120mm |
Weighing Part Size | 300mm(L)*150mm |

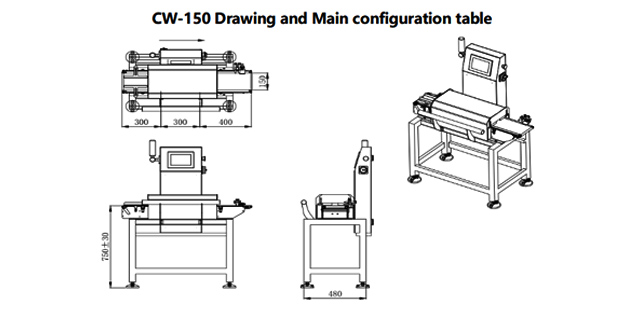

Machine size | Please check the drawing |
Rejection System | Pusher/Flipper |
Control System | High-speed A/D sampling controller |
Product Memory | 99 |
Running Direction | Face to the screen , From left to the right |
Gas source | 0.6-1Mpa |
Air pressure interface | Φ8mm |
working environment | Temperature： 0℃～40℃，Humidity：30%～95% |
Machine material | SUS304 |
Brand | Item | Model | Quantity |
WEINVIEW | Touch Screen | TK6071IQ 7inch/ MT8102IP10 inch | 1 |
ZEMIC | Load Cell | 10KG | 1 |
OMRON | switch power supply | S8JC-C100 24C | 1 |
OMRON | SOLID STATE RELAY | G3NA-D210B DC5-24 | 1 |
Honeywell | Intermediate relay | CR-2C-DC24V | 1 |
CHSO.M | Master Switch | SLD2(3LD2-32A) | 1 |
Danfoss | Frequency converter | Single Phase 220V 0.18KW | 1 |
JSCC | MOTOR | Three Phase 220V Photoelectricity 25W | 3 |
