Major function ：
●Report function: built-in report statistics, the report can be generated in EXCEL format, can automatically generate a variety of real-time data reports, U disk can store more than one year of statistical data, at any time to grasp the production status.
●Interface function: standard interface is reserved, data can be easily managed, and it can communicate with PC and other intelligent devices.
●Realize centralized control: can realize the centralized control of multiple weighing machines by one computer/person interface.
●Parameter recovery function: Provide the function of restoring factory parameter settings.
Product features：
●High versatility: The standardized structure of the entire machine and the standardized human-machine interface enable the weighing of various materials.
●Easy to replace: can store a variety of recipes, easy to change product specifications.
●Simple operation: use the color WEINVIEW HMI, fully intelligent and user-friendly design.
●Easy to maintain: conveyor belt is easy to disassemble and install, convenient for maintenance and cleaning.
●Speed adjustable: the frequency conversion control motor is used, and the speed can be adjusted according to the need.
●High speed, high precision: using high precision digital sensor, sampling speed is fast, high precision.
●Zero tracking: can be manually or automatically zeroed, and dynamic zero-point tracking.
Technical parameter table
Model | LX-CW-120 |
Power | AC220V±10% 50HZ（60HZ） |
Power rating | 0.1KW |
Weighing range | ≤20g |
Weighing precision | ±0.1g |
Minimum scale | 0.01g |
Transporting velocity | ≤30m/min |
Top speed | 100 个 |
Material length | ≤50mm |
Refers to the conveyor belt | 250mm*120mm |

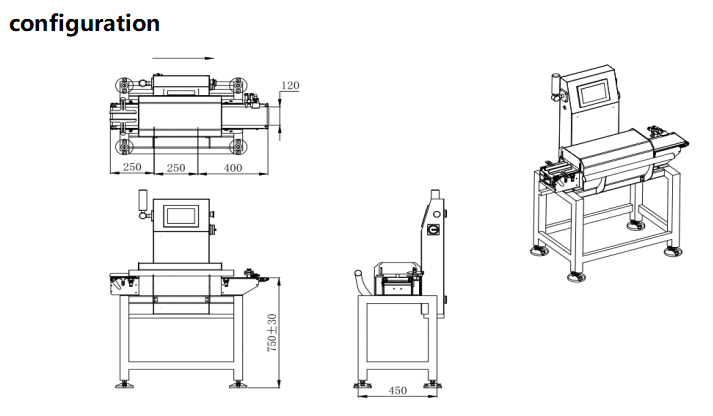

Product size | Refer to the drawings |
Method of elimination | Blow-type |
Control system | 高速A/D采样控制器Sampling controller |
Pre-set products | 99个 |
Operation direction | 面向机器，左进右出Left in, right out |
External gas source | 0.6-1Mpa |
Air pressure interface | Φ8mm |
Work environment | Temperature： 0℃～40℃， Humidity：30%～95% |
Body material | SUS304 Stainless steel |
