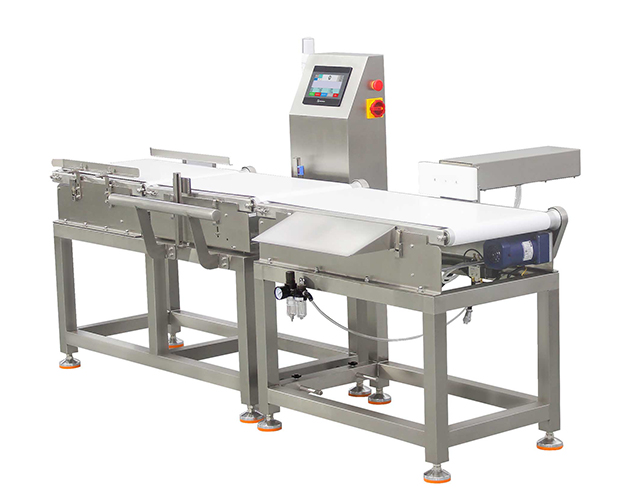

LX-CW-300 Automatic Weight Checker

Model：Automatic Weight Checker

This product is designed to test the weight of packaging products with a width less than 300mm and a weight of up to 2KG.

This product is designed to test the weight of packaging products with a width less than 300mm and a weight of up to 2KG. It is widely used in various industries, including electronics, pharmaceuticals, food and beverages, health supplements, daily chemicals, light industry, and agricultural by-products. For example, it can be applied to cosmetics (including beauty, cleaning, skincare, and hair care products), cleaning products (such as soaps, laundry detergents, and cleaning agents), oral care products (such as toothpaste and mouthwash), and other chemical products (such as shoe polish, floor wax, deodorants, and insect repellents).

Major function ：

l Report function: built-in report statistics, the report can be generated in EXCEL format, can automatically generate a variety of real-time data reports, U disk can store more than one year of statistical data, at any time to grasp the production status.

l Interface function: standard interface is reserved, data can be easily managed, and it can communicate with PC and other intelligent devices.

l Realize centralized control: can realize the centralized control of multiple weighing machines by one computer/person interface.

l Parameter recovery function: Provide the function of restoring factory parameter settings.



 Product features ：

l  High versatility: The standardized structure of the entire machine and the standardized human-machine interface enable the weighing of various materials.

l  Easy to replace: can store a variety of recipes, easy to change product specifications.

l Simple operation: use the color WEINVIEW HMI, fully intelligent and user-friendly design.

l Easy to maintain: conveyor belt is easy to disassemble and install, convenient for maintenance and cleaning.

l Speed adjustable: the frequency conversion control motor is used, and the speed can be adjusted according to the need.

l High speed, high precision: using high precision digital sensor, sampling speed is fast, high precision.

l  Zero tracking: can be manually or automatically zeroed, and dynamic zero-point tracking.

Technical parameter table：

model	LX-CW-300
Power	AC220V±10% 50HZ（60HZ）
Power rating	0.4KW
Weighing range	≤3000g
Weighing precision	±0.5g~±3g
Minimum scale	0.1g
Transporting velocity	60～90m/min
Top speed	80  pcs/min
Material length	≤300mm*270mm
Refers to the conveyor belt	450mm*300mm

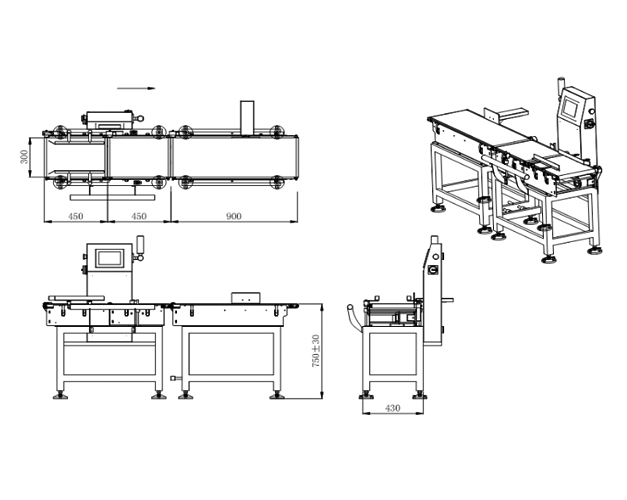

Product size	Refer to drawings
Method of elimination	Pegging
Control system	Sampling controller
Pre-set products	99个
Operation direction	Left in, right out
External gas source	0.6-1Mpa
Air pressure interface	Φ8mm
Work environment	Temperature： 0℃～40℃                     Humidity：30%～95%
Body material	SUS304  Stainless steel

Brand	Part	Type	Quantity
Weinview	Touch screen	TK6071IQ 7寸	1
ZEMIC	Weighing cell	20KG/50KG	1
Honeywell	‌ Intermediate relay	CR-2C-DC24V	1
Sijin	Master	SLD2(3LD2-32A)	1
JSCC	VFD	单相AC 220V 0.75KW	1
JSCC	Motor	三相220V  光轴120W	3
