Applicable industries：
Products from industries such as food, medicine, and chemicals are used to detect metal foreign substances that may be mixed into the raw materials of various non-metallic film-packaged biscuits, pastries, and snack foods during the production and processing. For example: iron and non-magnetic metal items (iron, copper, aluminum, stainless steel)
Product features:
The dual-channel signal detection circuit combination technology is adopted, featuring high sensitivity and strong anti-interference capability.
It is designed with all-digital DSP programming and features a 4.3-inch touch screen in both Chinese and English.
Signal processing is automatically calculated by digital chips, enabling rapid automatic learning to obtain the optimal detection phase. It can store and memorize 100 types of products, offering stability and reliability.
It has an automatic learning function based on product effects. For example, products containing sugar and foods with salt content, such as meat products, will generate signals similar to those of metals when passed through the metal detector. This effect can affect the detection results. This function can automatically reduce the product effect to achieve the best results.

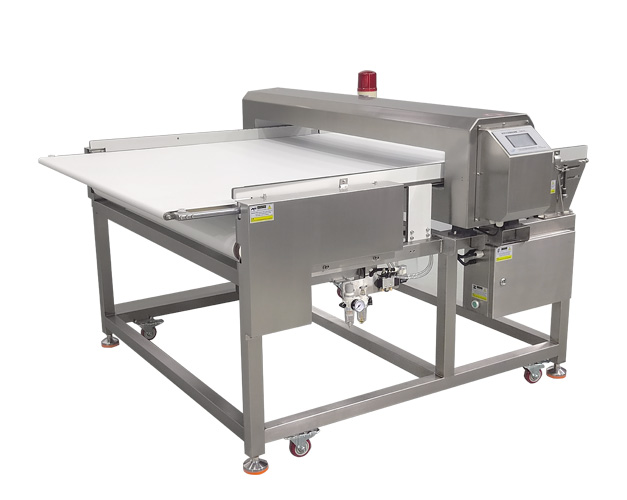

The entire machine frame is made of 304 stainless steel through laser cutting, welding and sandblasting processes. The food-grade white PU belt is suitable for food contact. Japanese brand bearings are used. The knife-edge is connected to a small drum with a diameter of 25mm. Japanese Mitsubishi synchronous belts and Taiwan Zhongda motors are adopted.
Detection alarm method: Buzzer alarm/shutdown, with excellent anti-vibration capability. Collisions and impacts will not trigger false alarms.
相关参数 Related parameters: | |||||||
型号Type | DLM-510S | ||||||
10008 | 10010 | 10012 | 10015 | 10020 | |||
检测通道宽度Detection channel width(单位:mm) | 1000（200-1300可定制） | ||||||
检测通道高度Detection channel height(单位:mm) | 80 | 100 | 120 | 150 | 200 | 不推荐更高通道 Not recommended for higher channels | |
灵敏度Sensitivity | Fe铁球Ф(mm) | ≥0.8 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | |
Non-Fe非铁Ф(mm) | ≥1.2 | ≥1.5 | ≥1.5 | ≥2.0 | ≥2.5 | ||
Sus不锈钢Ф(mm) | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ||
报警方式Type of alarm | 伸缩剔除Scalable removalþ 推杆Push¨ 摆臂Swing arm¨ 下沉Sink¨ 倒带Tape rewind¨ 报警停机Alarm shutdown¨ | ||||||

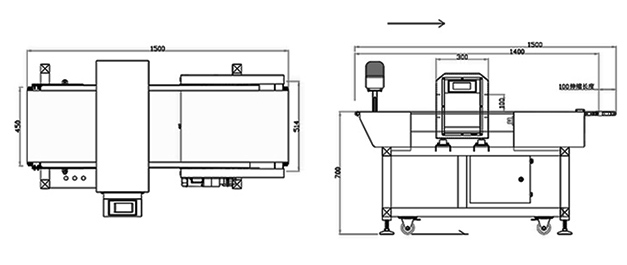

机器尺寸Machine size | 1800×1455×930(长×宽×高Length × Width × Height)定制尺寸以实际尺寸为准Customized size is based on the actual size. | ||||||
台面高度Work surface height | 800mm 其他高度可定制Customizable to other heights | ||||||
滚筒直径Roller diameter | 25mm | ||||||
机器重量Machine weight | 约400KG | ||||||
电源功率Power | 电源： 220V 50Hz 功率： 250W | ||||||
载重能力Loading capacity | 50KG 速度：10-25m/min（可调Adjustable） | ||||||
工作台面Working table | 高700mm（其他高度可定制Customizable to other heights） | ||||||
Note: The sensitivity parameter is the ideal value obtained from empty machine testing. The actual inspection standard shall be subject to the standard set after physical testing. | |||||||
