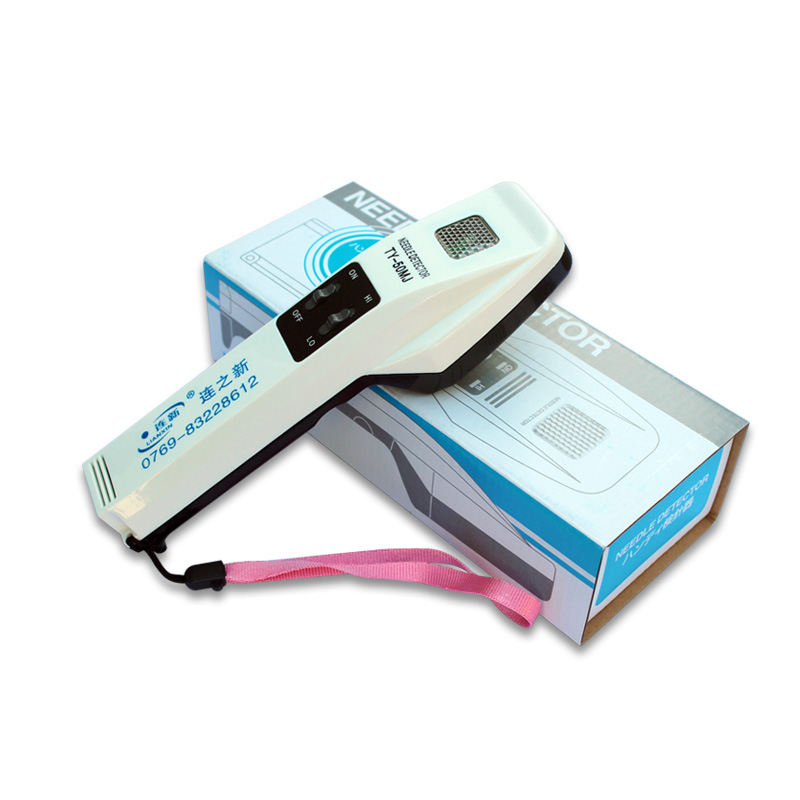

TY-50MJ Handheld Needle Detector

Model：Handheld Needle Detector

A handheld magnetic detector with the function of one-click adjustment for both high and low sensitivity of the detection surface, especially suitable for the magnetic inspection operations (for passing the detector) of metal buttons and metal zippers.

Main Feature:

■It has a one-click function for adjusting both high and low sensitivity levels, and it will give out both sound and light alarms simultaneously.

■The outer box is made of high-quality carbon fiber anti-static conductive plastic.

■The operation is simple, lightweight and easy to carry. The detection sensitivity is extremely high.

■Using imported high-end digital chips, the product performance is more stable and durable.

■Can accurately identify the location of broken needles (metal).

■Can work continuously for a long time without heating up or experiencing overload conditions.

■If the power supply voltage is lower than 6V, continuous beeping sounds will occur. This indicates insufficient power and the battery should be replaced.



Scope of Application:

1、It can be used for detecting broken needles in items such as knitted fabrics, clothing, socks, bedding, leather, and shoe materials, etc., which are thin and small. It can quickly and accurately locate the broken ends of the iron needles.

2、It can be used for inspecting ferromagnetic impurities in clothing and accessory items such as hardware buttons. The high sensitivity is equivalent to the so-called 8-10 level, and the low sensitivity is equivalent to the 5-8 level needle detection (high sensitivity for detecting 0.5-0.8mm is suitable for textile inspection, and low sensitivity for detecting 0.9-1.2mm is suitable for low-demand metal buttons, zippers, shoe materials, leather, and nail detection types of inspections).

3、It can be used for detecting ferromagnetic substances in medicines, foods, chemical raw materials, etc.

4、The inspection can be conducted on the presence of wood, walls, iron nails inside the tabletop, steel bars, and pipes.

5、It can be used to inspect the injured areas of humans, livestock, etc., such as those caused by injuries from tools or compression. It can also check whether harmful iron particles have infiltrated the internal parts.

6、It can also be used for border guard checkpoints and for the quick search by public officials of concealed weapons by the inspected individuals.

Product Parameter：
型号	MODEL	TY-50MJ型
检测方式	Detection method	磁场诱导Magnetic field induction
检测灵敏度	Detection ability	高档FeΦ0.5mm-0.8mm;低档0.9-1.2mm
感应调节	Detection adjustment	高低档调节High and low gear adjustment
检测面宽度	Detection width	52×70mm
检测高度	Detection hight	φ1.2Fe检测高度可达10mm左右，φ0.8mm铁球在表面可探测到；φ0.7×20铁针，其检测高度可达50mm以上。The detection height of φ1.2Fe can reach about 10mm, and a φ0.8mm iron ball can be detected on the surface; the detection height of φ0.7×20 iron needles can reach over 50mm.
报警方式	Alarm method	声光报警sound-light alarm
电源	Power supply	6F22—9V长方形可更换电池
功率	Pated output	待机<5mA，声光报警<30mA
机身尺寸	Dunension	195×58×45mm(长×宽×高)
净重	Weight	约400G
