Home > Products > Automatic Checkweigher
Tel：13723581296
Major function：
l Report function: built-in report statistics, the report can be generated in EXCEL format, can automatically generate a variety of real-time data reports, U disk can store more than one year of statistical data, at any time to grasp the production status.
l Interface function: standard interface is reserved, data can be easily managed, and it can communicate with PC and other intelligent devices.
l Realize centralized control: can realize the centralized control of multiple weighing machines by one computer/person interface.
l Parameter recovery function: Provide the function of restoring factory parameter settings.
Product features：
l High versatility: The standardized structure of the entire machine and the standardized human-machine interface enable the weighing of various materials.
l Easy to replace: can store a variety of recipes, easy to change product specifications.
l Simple operation: use the color WEINVIEW HMI, fully intelligent and user-friendly design.
l Easy to maintain: conveyor belt is easy to disassemble and install, convenient for maintenance and cleaning.
l Speed adjustable: the frequency conversion control motor is used, and the speed can be adjusted according to the need.
l High speed, high precision: using high precision digital sensor, sampling speed is fast, high precision.
l Zero tracking: can be manually or automatically zeroed, and dynamic zero-point tracking.
Technical parameter table：
Model | LX-CW-500 |
Power | AC220V±10% 50HZ（60HZ） |
Power rating | 0.4KW |
Weighing range | ≤40kg |
Weighing precision | ±5g~±20g |
Minimum scale | 1g |
Transporting velocity | 25~50m/min |
Top speed | 40 pcs/min |
Material length | ≤650mm*440mm |
Refers to the conveyor belt | 1000mm*500mm/900mm*490mm |

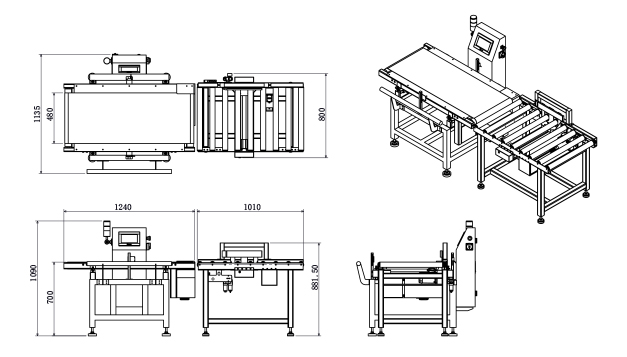

Product size | Refer to the drawings |
Method of elimination | Push rod type |
Control system | 高速A/D采样控制器Sampling controller |
Pre-set products | 99个 |
Operation direction | Left in, right out |
External gas source | 0.6-1Mpa |
Air pressure interface | Φ8mm |
Work environment | Temperature： 0℃～40℃， Humidity：30%～95% |
Body material | SUS304 Stainless steel |
