Main Feature:
●Using the circuit from Japan's Hitachi, and the main chips are all from well-known brands from Japan and the United States.
●Using multiple sets of sufficient magnetic steel and induction coils arranged in a checkered pattern, and with dual detection by the upper and lower probes, ensures no missed detections.
●With sensitivity adjustment function: The sensitivity can be adjusted in 120 levels, and both high and low sensitivity can be set with one button.
●Has multi-point position display function: Can accurately identify the location of the metal.
●With a pressure cotton rod: The height can be adjusted as needed to guide the cotton products through the inspection machine without scraping the probe.
●There are movable casters: facilitating the movement of the machine
●A sound and light alarm is triggered upon detection of a metallic foreign object. The indicator light for the location of the metal turns on, and a parking signal is output. The equipment can be manually controlled to shut down.
●Supports unlimited widening customization, with the width ranging from 1000mm to 5000mm that can be customized at will. The detection width does not affect the detection accuracy. Only the detection height affects the detection accuracy.
Product Parameter:
型号 | MODEL | LX-9006A 2300*100 | LX-9006B |
检测宽度mm | Detection width | 2300mm | |
检测高度 | Detection hight | 100mm | |
灵敏度 | Detection ability | ≥Φ1.0mm | |
检测方式 | Detection method | 磁场诱导,电脑检知Magnetic field induction, computer detection | |
感应调节 | Detection adjustment | 1-120级可调 | |
报警方式 | Alarm method |
Single-point display, alarm and shutdown | Multiple-point display continuous detection Alarm sound controllable shutdown |
电源 | Power supply | Ac220V 50-60Hz | |
功率 | Pated output | 90W | |

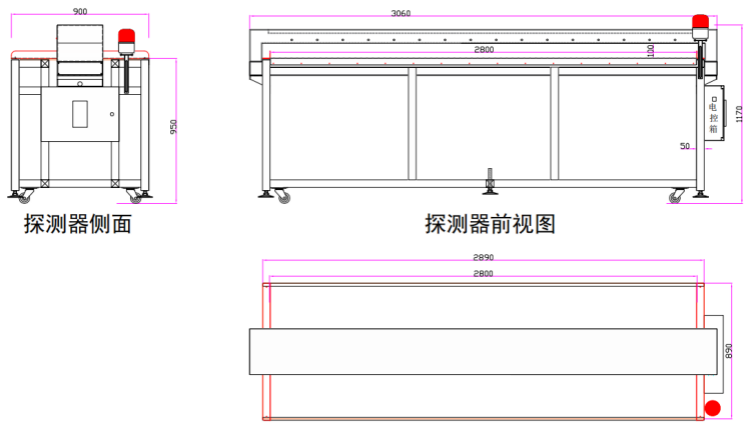

机身尺寸 | Dunension | 2560长length×900宽width×1170mm高height | |
净重 | Weight | 大于greater than 400KG | |
