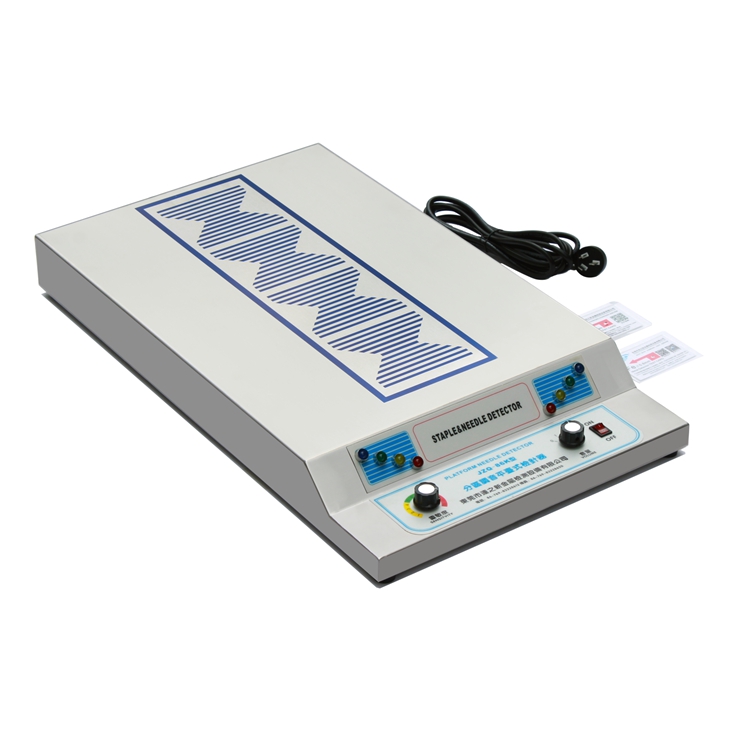

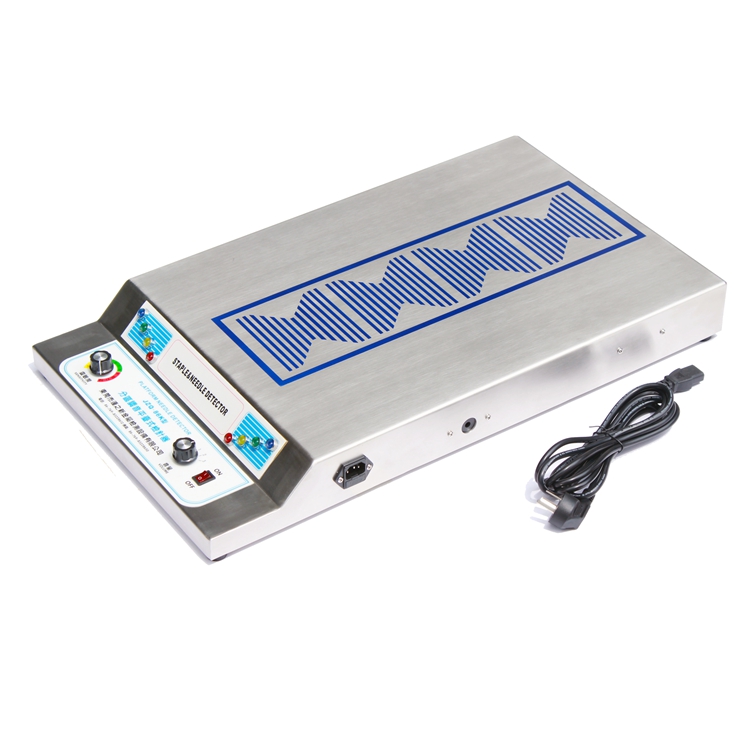

The Lianxin brand JZQ-86K partition tuning high-sensitivity platform needle detector

Model：Needle Detector,partition tuning high-sensitivity platform needle detector

The Lianxin brand JZQ-86K partition tuning high-sensitivity platform needle detector is made entirely of 304 stainless steel, featuring dual-channel super detection sensors and a four-partition design

The Lianxin brand JZQ-86K partition tuning high-sensitivity platform needle detector is made entirely of 304 stainless steel, featuring dual-channel super detection sensors and a four-partition design. The sound and sensitivity are adjustable, offering higher needle detection sensitivity and strong stability and portability, making it more suitable for the strict inspection requirements of toys, clothing, and accessories.

【Application Scope】Used for clothing, shoe materials, ties, towels, scarves, socks, medicine, food inspection for needles, blades, metal fragments; used for checking shoe materials, plastics, and other products for needles, unremoved nails, iron filings, and other metal impurities.

Used for checking clothing accessories such as metal buttons, zippers, bead chains, clasps, etc., to ensure they do not contain ferromagnetic materials that are not allowed to pass needle detection (containing ferromagnetic materials can cause the clothing and other products installed with these accessories to fail needle detection).

【Function Features】

1. Japanese technology, computer chip SMD integrated circuits, 304 stainless steel housing, environmentally friendly, durable, and stable.

2. The machine has extremely high sensitivity and anti-interference performance, can adapt to long-term use, and the detection effect can reach 100% when used according to regulations.

3. The appearance and manufacturing process are elegant and generous, the internal circuit layout is reasonable and stable, using a computer chassis power supply built-in fuse socket.

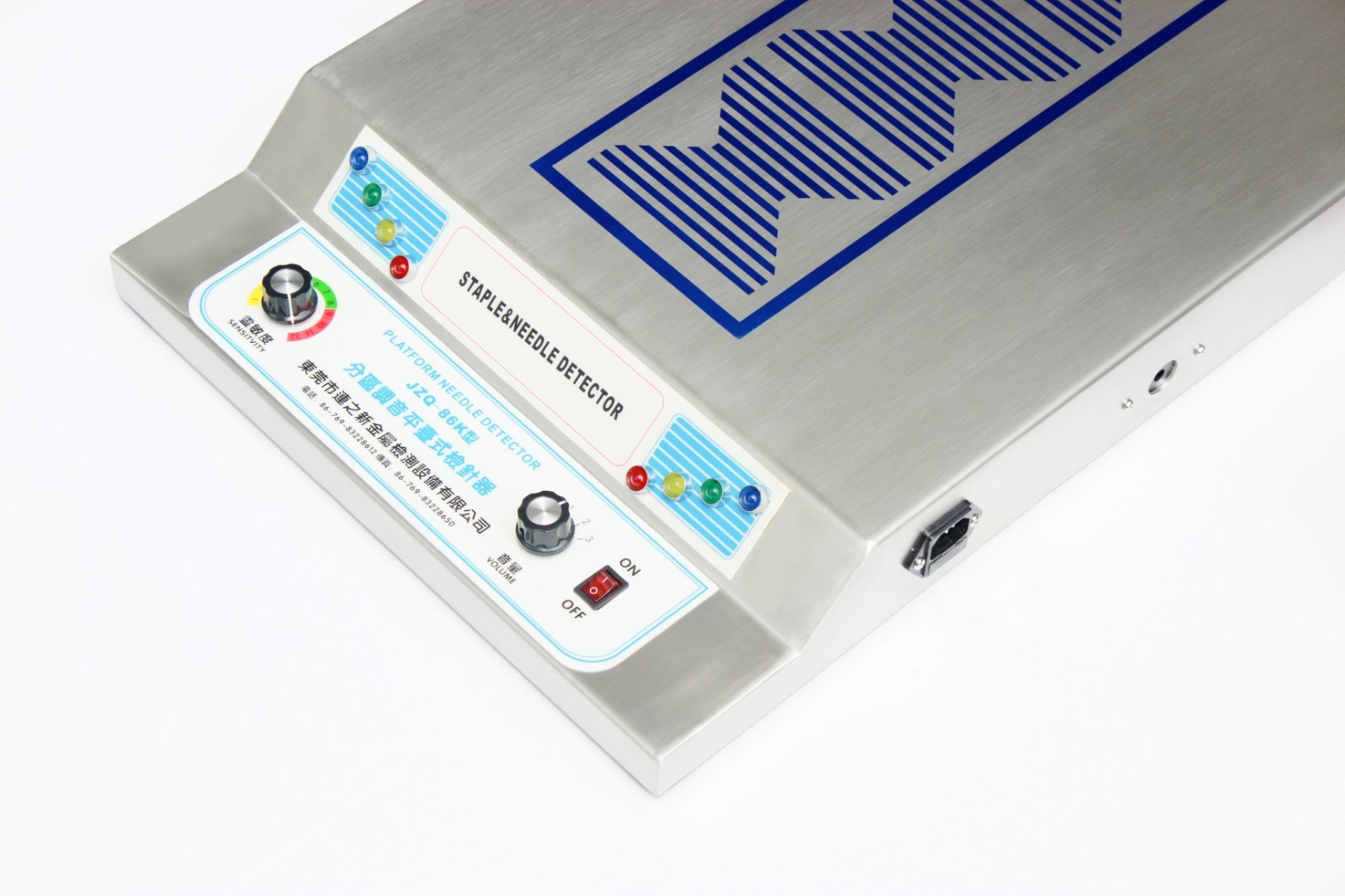

4. It has a sensitivity adjustment of 1-12 levels, a four-stage alarm volume intensity adjustment, and four corresponding indicator lights, allowing each to be operated independently without mutual interference.

5. The dual-channel detection sensor is arranged in a triangular pattern, with no blind spots in the detector. The detection sensitivity is 30% higher than the 86B model.

Product Parameter：
Body Material	304 stainless steel outer box, elegant and sturdy, with excellent product stability
Size	L70×W40×H7CM	Search coverage	50×25CM(Length × Width)
Package size	L78×W45×H10CM	Power Voltage	交流220V±10%
Weight	约13.5Kg；	Frequency	50HZ
Power	30W；	Alarm method	Sound and light alarm, with four levels of alarm volume adjustment
Sensitivity	The surface can detect iron balls up to 0.8mm in diameter, half-cut needles, and paper clips up to 6 centimeters high (the detection sensitivity increases as the distance from the detection surface decreases).
Way of checking	I. Corporate Standard: Place the randomly included test card (iron ball diameter 1.0MM) close to the detection area of the instrument and move it for scanning. The device should detect and emit both sound and light alarms. The unit and its appearance must be intact with no damage to be considered qualified.   II. Customer Standard: Insert the standard test card into the customer's product (ensuring the product does not contain ferromagnetic metal impurities) and move it closely over the test surface for scanning. The testing instrument should emit both sound and light alarms   Note: The height of the customer's product and packaging should be within 5CM for the best effect. The closer the distance, the higher the sensitivity.
