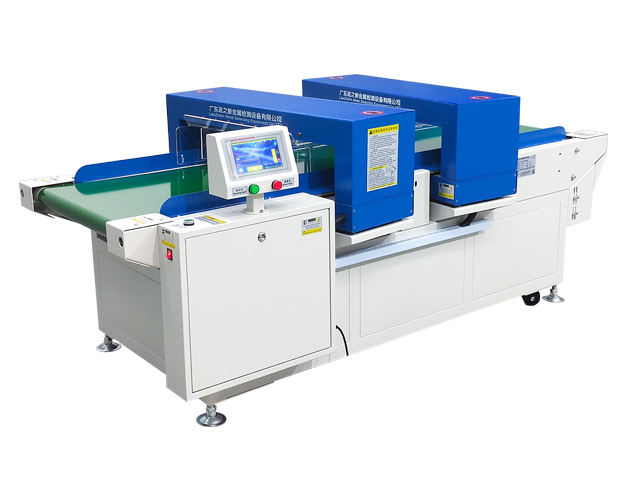

LX-9008 Dual probe anti-interference conveyor needle detector

Model：Needle Detector,Dual probe anti-interference conveyor needle detector

Check for broken needles: all exported textiles such as women's clothing, men's clothing, student clothing, workwear, baby products, knitwear, underwear, socks, fabrics, non-woven fabrics, embroidery products, towels, bath towels, shoe materials, gloves, toys, handicrafts, etc.

Functional features:

Using two sets of upper and lower probes in front and back, and a double row of 64 sets of sufficient sensors arranged in a figure eight pattern can effectively avoid the possibility of missing detection of needle breakage directionality.

The body adopts a full square tube steel frame electrostatic spraying process, which is stable, anti-interference and impact resistant

The probe height can be optionally combined with height increasing blocks to meet various requirements for needle height;

 It has a position display function, which displays the exact position of the broken needle at eight o'clock;

Adopting high-performance computer processing chips from Silicon in the United States and high-precision SMT surface mount circuit boards;

 Color full touch screen with large LCD graphic display, Chinese and English operation menu;

Optional printer, remote WIF connection management module, intelligent networking, automatic component removal, etc;

100 level sensitivity display, displaying the environment and the iron content of the detected substance, with innovative sensitivity indicator settings

100 level sensitivity digital control, with both extremely wide sensitivity adjustment range and fine adjustment

Set up three levels of security locks, including no lock, low-level security, and high-level security, with reliable sensitivity and permission management

Multiple detection modes, including high sensitivity mode (suitable for clothing and accessories), uniform mode, colored pigment mode (suitable for shoe materials and leather), and environmentally friendly automatic shutdown mode

Using a well-known and highly reliable switching power supply, it can adapt to various power supply voltage usage scenarios and effectively resist interference on power lines;



Applicable locations:

Check for broken needles: all exported textiles such as women's clothing, men's clothing, student clothing, workwear, baby products, knitwear, underwear, socks, fabrics, non-woven fabrics, embroidery products, towels, bath towels, shoe materials, gloves, toys, handicrafts, etc.

Needle inspection machine for metal accessories such as hardware buttons, hardware zippers, Japanese buttons, bead chains, brooches, etc. in clothing and handbags.

Aluminum foil packaging: Suitable for food metal foreign object inspection with aluminum foil packaging. If you need to detect all metal foreign objects, please choose the DLM-510 series products.

型号	MODEL	6010	6015	6018	6020	6025
检测宽度mm	Detection width	600	600	600	600	600
灵敏度（空载时)	Detection ability	≥Φ0.8	≥Φ1.0	≥Φ1.1	≥Φ1.2	≥Φ2.0
检测高度	Detection hight	100mm	130mm	150mm	180mm	220mm
检测方式	Detection method	Magnetic field induction, detected by computer
感应调节	Detection adjustment	Adjustable from level 1 to level 12
报警方式	Alarm method	Sound / light alarm and return
电源	Power supply	Ac220V  50-60Hz。
功率	Pated output	120W 。
机身尺寸	Dunension	Length 2238mm×Width 1010mm×Height 910-930-980-1100mm
净重	Weight	greater than 450KG。
