JZQ-7300-600 Assembly Line Conveyor-Type Needle Detector

Model：Needle Detector,Assembly Line Conveyor-Type Needle Detector

The needle inspection machine, designed and manufactured according to the production requirements of assembly lines such as shoe factories, can be directly placed on the existing production lines for use, without requiring additional occupation of passageways and space.

Check broken needles: Shoe factories inspect needles for shoes, clothing, toys, hats, baby products, underwear, socks, fabrics, non-woven fabrics, embroidered items, towels, bath towels, carpets, gloves, handicrafts and all other exported textiles and wearables are subject to needle inspection.

Metal detection: For metal accessories such as hardware buttons, zippers, bead chains, and Y-shaped buckles in clothing and handbags.
Aluminum foil packaging: Suitable for the inspection of food metal foreign objects using aluminum foil packaging. If you need to detect all metal foreign objects, please choose the Lianxin DLM-508 series products.

Functional Characteristics:
■ The entire frame is made of steel, with a beautifully painted surface. The entire machine has strong steel structure, which is impact-resistant and suitable for use on existing production lines without occupying additional passageways.

■ Japanese movement, imported photoelectric sensor, with telescopic crossbar for adjustable span, suitable for various widths of assembly lines.
■ Super-strong anti-interference computer chip integrated circuit, dual-line T-shaped arrangement sensor, superior to traditional dual-probe needle detection machines.
■ All the function keys are of touch-sensitive film switches, which avoids the drawback of mechanical keys being prone to damage.
■ It has a position display function, which enables the precise display of the broken needle position at eight specific points (with an optional printer function module available).
■ It has a counting function, distinguishing between good products and defective products (qualified, total count, detected).
■ The alarm function includes three modes: sound, light and shutdown. The sensitivity can be adjusted in a decimal scale from 10 to 100.
■ Special protection circuit: The machine will automatically stop running if no object is detected for ten minutes.
■ It has the function of switching between B/C (auxiliary materials/finished products) modes, which is suitable for inspecting different products.
■ When a broken needle or a metallic object is detected, both sound and light alarm methods will be triggered. The machine will stop, return to the starting point, and then automatically resume operation.
■ High sensitivity. When the detection range is 12 cm, it can detect tiny iron filings with a diameter of 0.8 mm. The nine-point testing method ensures no missed detections.

Product Parame:

型号	MODEL	6010	6015	6020	6025	6030
检测宽度mm	Detection width	600	600	600	600	600
灵敏度（空载时)	Detection ability	≥Φ0.8	≥Φ1.0	≥Φ1.2	≥Φ1.5	≥Φ2.0
检测高度	Detection hight	100mm	130mm	180mm	230mm	280mm
检测方式	Detection method	磁场诱导,电脑检知。
感应调节	Detection adjustment	1-10级可调
报警方式	Alarm method	声光报警并停机自动倒带。
电源	Power supply	Ac220V  50-60Hz。
功率	Pated output	120W 。

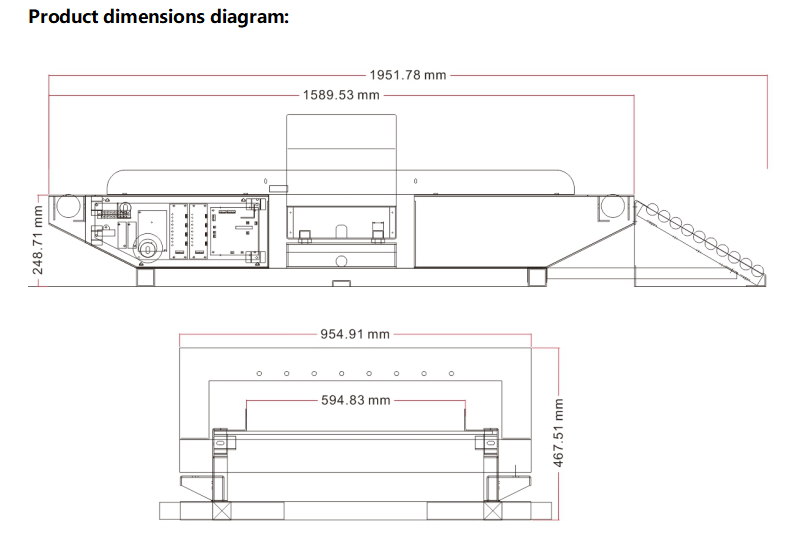

机身尺寸	Dunension	长1600×宽1000×高490。
净重	Weight	190KG。
