Home > Products > Conveyor Needle

Parameter

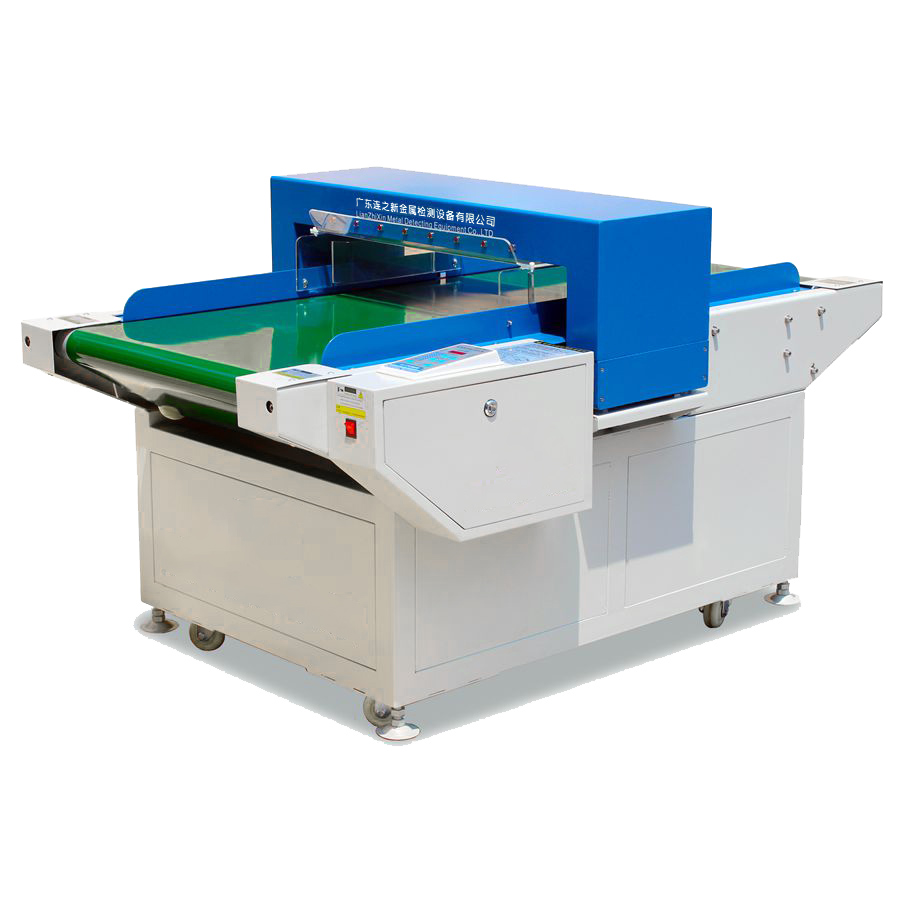

JZQ-8630K conveyor needle detector machine

Model：needle detector machine,needle detector

using digital circuit analysis detected objects, traditional pin detection machines can not match the strong anti-jamming and high sensitivity . The pin detection very demanding extremely strict orders to Japan. Mainly used for toys, clothing, footwear, chemicals, leather, knitwear, and so on need to detect impurities in ferromagnetic metal detection industry, used to detect or lost in the mixture of raw materials or products in broken needle, such as ferromagnetic metal wire, to avoid Consumers or enterprises, directly or indirectly brought about the loss of export products to the detection equipment. Can also be used for food processing enterprises need to rule out the possibility Lvbo packaging only to ferromagnetic metal detection.

Tel：13723581296

Explanation

Scope:

For clothing, plush, neckties, towels, scarves, socks, zippers, drugs, food and other products Broken needle, razor blades, metal fragments, ferromagnetic metal and other metal impurities in check.

Features:

■ strengthen the anti-jamming computer chip integrated circuits, easy maintenance.

■ with B / C (Accessories / finished) mode switching function, the pin detection of different products.

■ high sensitivity (12 CM-channel high degree of pin detection machines to detect small diameter of 0.8 mm iron filings, 9:00 testing does not leak alarm).

■ this machine to adapt to long working hours, according to the use of efficient detection of 100%.

■ When found broken needle, iron objects, sound, light two alarm, and stands retrogress to the starting point, and once again run automatically.

■ sensitivity 0-10-conditioning, light touch-panel operation, the operation is extremely simple.

■ a count function, through the difference between Good and bad products


Technical parameters:

Detection width

Detected high

Sensitivity

Transmission speed

power supply

power

N.W

CBM(L×W×H)

550mm

120mm
150mm
200mm
300mm
400mm

FeΦ≥0.8mm
FeΦ≥1.0mm
FeΦ≥1.2mm
FeΦ≥2.0mm
FeΦ≥3.5mm

35M/min

220V

100W

220kg



250kg

1650×1050×900

1650×1050×1200

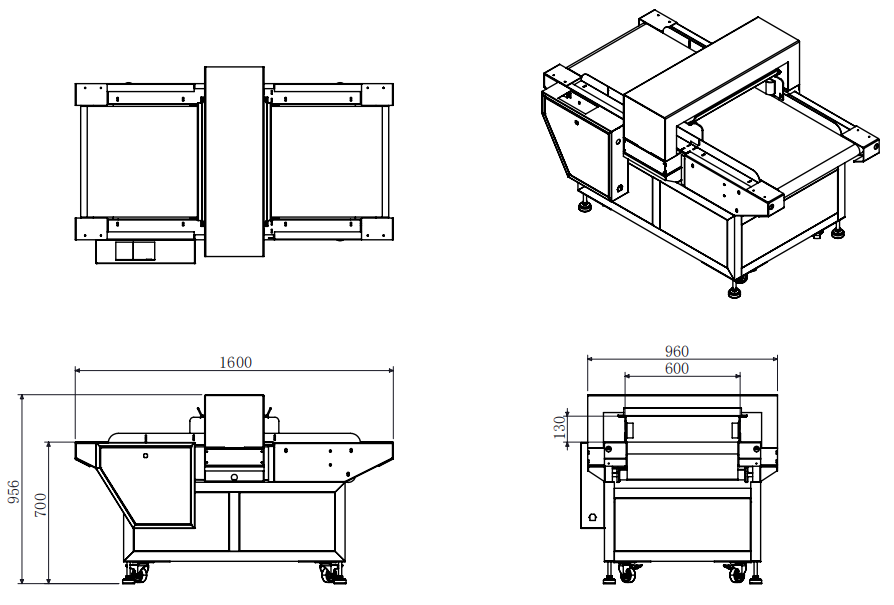

Product Dimension Diagram：

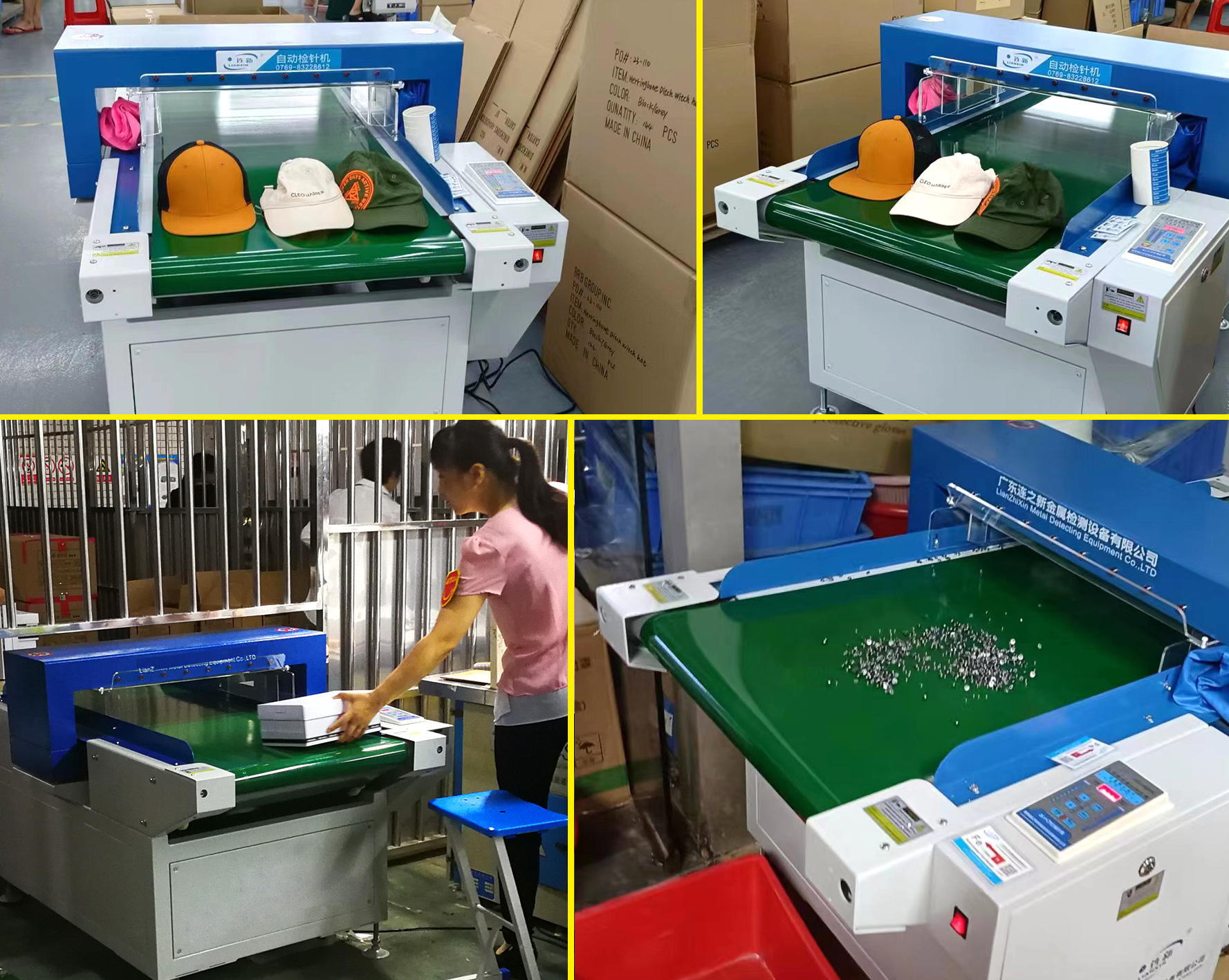

Application case：

8630K检针机 案例拼图.jpg
