Applicable industries：
Products from industries such as household paper, food, medicine, toys, clothing, footwear manufacturing, chemicals, leather, and knitting are used to detect metal impurities mixed in various products or raw materials during the production and processing process. For example: ferrous and non-ferrous magnetic and non-magnetic metal items (common metals such as iron, copper, aluminum, stainless steel, etc. can all be detected).
Product features:
●The dual-channel signal detection circuit combination technology is adopted, featuring high sensitivity and strong anti-interference capability.
●It is designed with all-digital DSP programming and features a 4.3-inch touch screen in both Chinese and English.
●Signal processing is automatically calculated by digital chips, enabling rapid automatic learning to obtain the optimal detection phase. It can store and memorize 100 types of products, offering stability and reliability.
●It has the function of automatic learning based on product effects, allowing for quick setting of product effects and achieving a high level of intelligence.

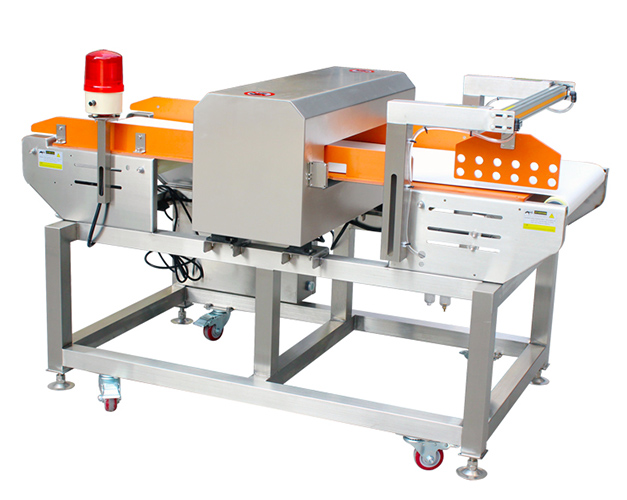

●The entire machine frame is made of 304 stainless steel through laser cutting and welding technology as well as sandblasting process. It is equipped with food-grade white PVC or PU belts, Japanese brand bearings, non-metallic contaminated rollers with a diameter of Ф60mm, and uses Japanese Mitsubishi synchronous belts and Taiwan Zhongda motors.
●Detection alarm method: Buzzer alarm/shutdown, with excellent anti-vibration capability. Collisions and impacts will not trigger false alarms.
Technical parameter table：
Related parameters: | ||
Type | 6040 | |
Detection channel width | 600可定制其他宽度Customizable to other widths | |
Detection channel height | 400mm | |
Sensitivity | FeФ | 3.0mm |
Non-FeФ | 4.0mm | |
SusФ | 5.0mm | |
Type of alarm | Alarm shutdownþ Push¨ Swing arm¨ Sink¨ Tape rewind¨ | |

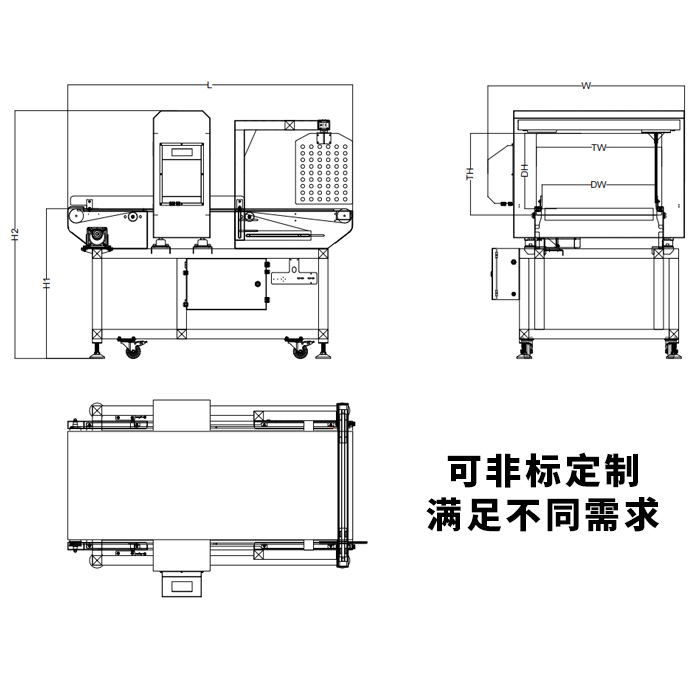

Machine size | 1500×1020×1000mm(Length × Width × Height) | |
Speed | 定速25m/min（可选调速型10-60m/min） | |
Conveyor | 食品级白色PVC（可选绿色、蓝色或PU）Food-grade white PVC (optional in green, blue or PU) | |
Roller diameter | 60mm(可选25、35、50、60、75) | |
Machine weight | 约200～250KG | |
Power | 220V 50Hz 功率：120-250W （Increase the power depending on the load conditions） | |
Loading capacity | 5-25KG （可选更大载重Optional greater load capacity） | |
Working table | 700mm（其他高度可定制Customizable to other heights） | |
Note: The sensitivity parameter represents the ideal value obtained from the empty machine test. The actual verification standard shall be based on the established standard for the physical device. | ||
