Applicable industries：
Detection of missing or improperly placed deoxidizers (such as missing or improperly placed deoxidizer in mooncakes), detection of missing card-pulling needles in mobile phone paper boxes, detection of missing iron pieces of mosquito coils, detection of missing helmet fixing pieces, detection of food moisture-proof agents and desiccants, detection of fresh-keeping bag knife blades... etc. These are all detection checks for missing or improperly placed components in various application industries. They replace manual work to achieve efficient detection.

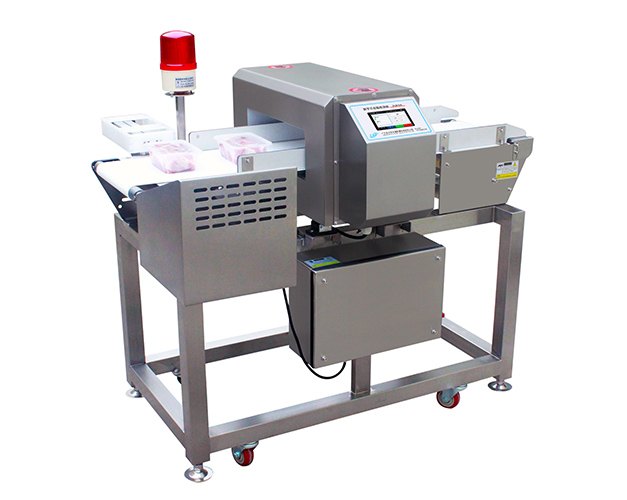

Product features:
●The dual-channel signal detection circuit combination technology is adopted, featuring high sensitivity and strong anti-interference capability.
●Featuring fully digital DSP programming design, Chinese/English menu, and LCD touchscreen control panel.
●Signal processing is automatically calculated by digital chips, enabling rapid automatic learning to obtain the optimal detection phase. It can store and memorize 100 types of products, offering stability and reliability.
●It has an automatic learning function based on product effects. For example, products containing sugar and foods with salt content, such as meat products, will generate signals similar to those of metals when passed through the metal detector. This effect can affect the detection results. This function can automatically reduce the product effect to achieve the best results.
●The whole rack is made of 304 stainless steel with laser cutting and welding technology and wire drawing process, food-grade white PVC or PU belts.
●Detection alarm method: Buzzer alarm/shutdown, with excellent anti-vibration capability. Collisions and impacts will not trigger false alarms.
Technical parameter table：
Related parameters: | ||
Type | DLM-510S | |
2015 | ||
Detection channel width(mm) | 210 | |
Detection channel height(mm) | 150 | |
sensitivity | Iron-containing deoxidizer | ☑ |
Stainless steel card-pulling needle | ☑ | |
Any metal accessories | ☑ | |
Type of alarm | Alarm shutdownþ☑ Push rod☑ Swing arm□Sink□ Blow□ Tape rewind□ | |
Machine size | 1200×580×900(Length × Width × Height)Customized size is based on the actual size. | |
Roller diameter | 50mm（可选24mm、50mm、60mm） | |
Machine weight | 约160-180KG | |
Power | 电源： 220V 50~60Hz 功率：60W | |
Loading capacity | 5-15KG 速度Speed：25m/min（不可调） | |
Working table | 高700（其他高度可选Other highly optional options750-800-900mm） | |
Note: The sensitivity parameter is the ideal value obtained from empty machine testing. The actual inspection standard shall be subject to the standard set after physical testing. | ||
