Applicable industries：
●Stuffed textiles such as plush toys and pillows are used to detect metal foreign objects mixed in toys. For example, iron and non ferromagnetic metal items (common metals such as iron, copper, aluminum, stainless steel, tin foil, etc. can be detected)
Product features:

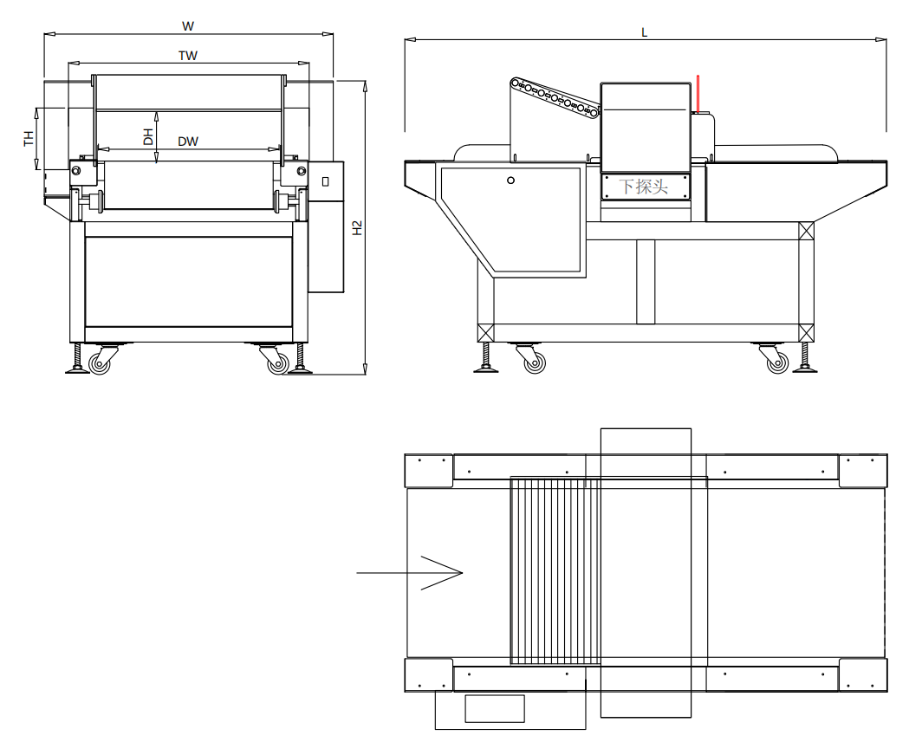

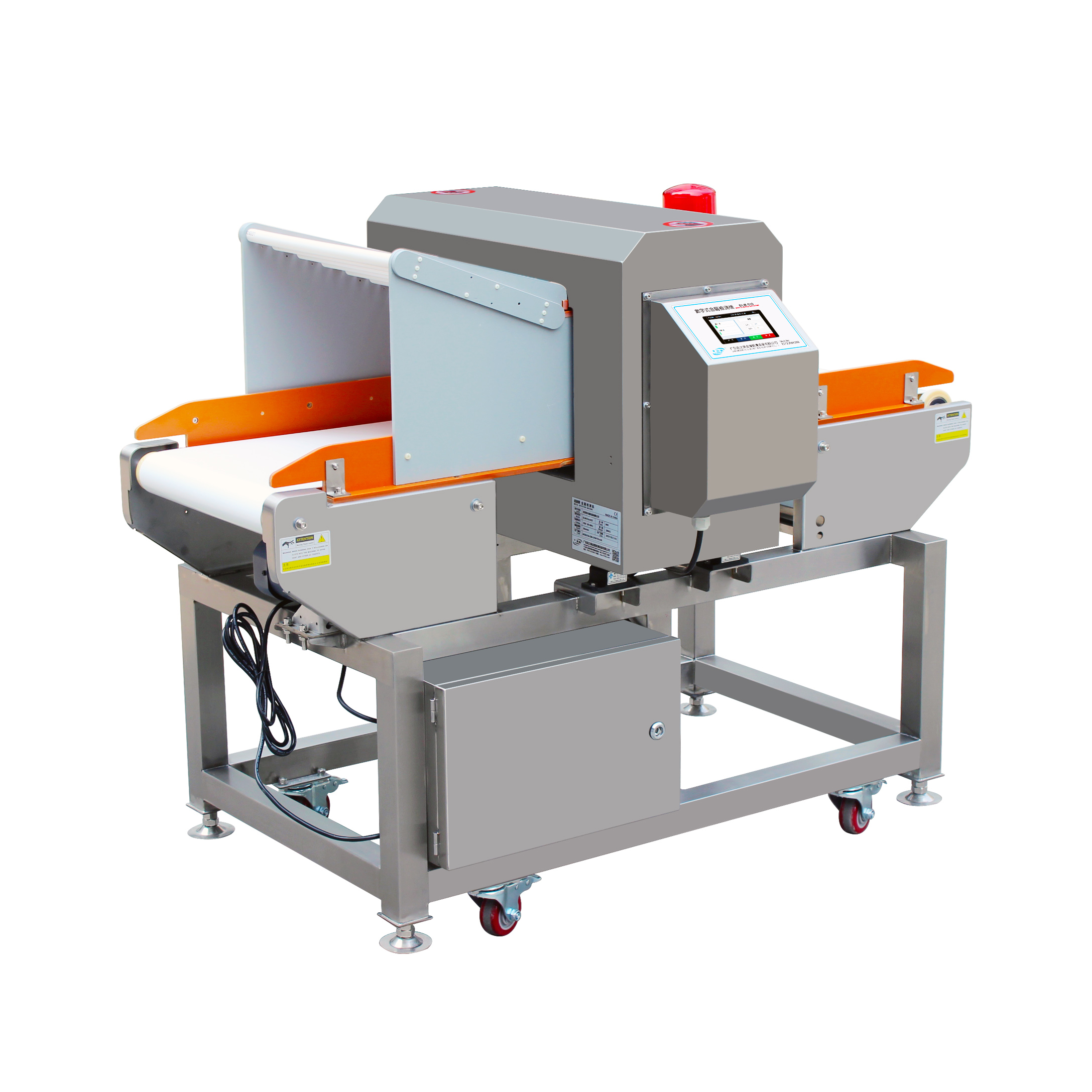

●Adopting Lian zhi xin’s patented compression loading device allows larger plush stuffed toys to pass through than the actual inspection port, achieving the purpose of higher detection accuracy.
●Adopting dual-channel signal detection circuit merging technology, featuring high sensitivity and strong anti-interference capability.
●Designed with fully digital DSP programming, featuring a 4.3-inch LCD touchscreen display.
●Signal processing is automatically calculated by digital chips, enabling rapid automatic learning to obtain the optimal detection phase. It can store and memorize 100 types of products, offering stability and reliability.
●The product features an automatic learning function, which can automatically reduce the impact of certain product residues and conveyor belt contamination to achieve optimal results.
●The machine frame is made of 304 stainless steel using laser cutting and welding technology with a brushed finish.
●Detection alarm method: Buzzer alarm/shutdown, with excellent anti-vibration capability. Collisions and impacts will not trigger false alarms.
Technical parameter table：
Related parameters: | |||||||||
Type | 5010 | 5012 | 5015 | 5020 | 5023 | 5025 | 5035 | 5050 | |
Detection channel width(单位:mm) | 500 Customizable to other widths | ||||||||
Detection channel height(单位:mm) | 100 | 120 | 150 | 200 | 230 | 250 | 350 | 500 | |
Sensitivity | FeФ(mm) | 0.8 | 0.9 | 1.0 | 1.1 | 1.2 | 2.0 | 2.5 | 3.0 |
Non-FeФ(mm) | 1.2 | 1.2 | 1.5 | 1.8 | 2.0 | 2.5 | 3.0 | 3.5 | |
SusФ(mm) | 1.5 | 1.8 | 2.0 | 2.3 | 2.5 | 3.0 | 3.5 | 4.0 | |
Type of alarm | Alarm shutdown☑ Push rod□ Swing arm□ 下沉Sink□ Tape rewind□ | ||||||||
Machine size | 1500×820×1000mm(Length × Width × Height) | ||||||||
Speed | 定速25m/min（可选调速型Optional speed control type10-50m/min） | ||||||||
Conveyor | Food-grade white PVC (optional in green, blue or PU) | ||||||||
Roller diameter | 60mm(可选25、35、50、60、75) | ||||||||
Machine weight | 约220～280KG | ||||||||
Power | 220V 50Hz 功率：90W | ||||||||
Loading capacity | 5-25KG （Optional greater load capacity） | ||||||||
Working table | 700mm（Customizable to other heights） | ||||||||
Conventional machines are available in stock. The sensitivity parameter is an approximate value from empty machine testing, while actual inspection parameters may decrease depending on the composition and size of the test object. | |||||||||
